Android 性能優化之內存優化與泄漏分析工具LeakCanary
一、背景
在Android應用中,除了正常的業務開發,我們也要關注性能問題。卡頓、內存溢出、內存泄漏等問題,直接的表現會反饋到用戶體驗上,用戶體驗不好導致應用被卸載或者換到其他平臺。
在性能優化,各大公司都會付出一些代價,或者安排專人負責。有些新手也想做,但是無從下手,對專業工具和專業代碼使用以及分析比較吃力,排查起來也比較費勁。如果有專業的工具能夠只管的把這些記錄并標記好。這樣新手也可以通過詳情的問題去排查,那么LeaksCanary就是這款工具了。
二、性能的簡單介紹(在面試的時候,也經常會被問起)
1、卡頓:卡頓的主要涉及到線程的使用,在LeaksCanary中,會給出當前線程的使用信息
2、內存溢出:是程序在申請內存時,沒有足夠的內存空間供其使用
3、內存泄漏:是程序在申請內存后,無法釋放已申請的內存空間
三、LeaksCanary
1、介紹
LeakCanary是Square公司為Android開發者提供的一個自動檢測內存泄漏的工具,
LeakCanary本質上是一個基于MAT進行Android應用程序內存泄漏自動化檢測的的開源工具,我們可以通過集成LeakCanary提供的jar包到自己的工程中,一旦檢測到內存泄漏,LeakCanary就會dump Memory信息,并通過另一個進程分析內存泄漏的信息并展示出來,隨時發現和定位內存泄漏問題,而不用每次在開發流程中都抽出專人來進行內存泄漏問題檢測,極大地方便了Android應用程序的開發。

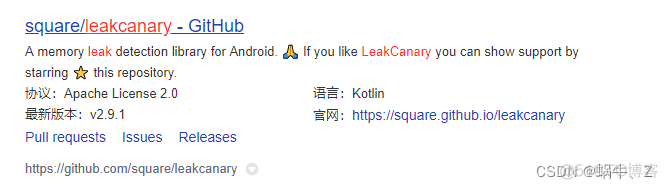

2、github地址:
GitHub - square/leakcanary: A memory leak detection library for Android.https://www.baidu.com/link?url=bcGyW7ySy9cW2azMXz5h-je6EtkwbMggSIlaEiFfWbtIqf3Yx3rak5qcn3Om3WJp&wd=&eqid=87caa544001114160000000463e1f198

3、接入
3.1依賴庫:
debugImplementation 'com.squareup.leakcanary:leakcanary-android:2.9.1' releaseImplementation 'com.squareup.leakcanary:leakcanary-android-no-op:2.9.1'
3.2、代碼引入
2.9.1的庫已kotlin開發語言為核心,網絡上大多數還是1.6.1。這就導致在接入的時候無法方式不同。
1.6.1版本,直接在application中,通過LeakCanary.install(application),來完成。
2.9.1接入:

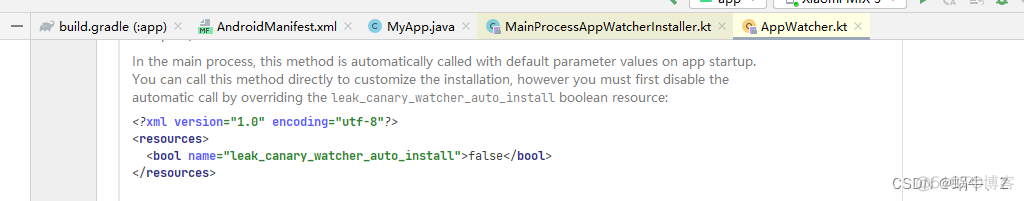

在androidManifest中引入
leak_canary_watcher_auto_install:
是否自動安裝,如果你不想自動安裝,可以自行社會一個變量引入,默認不自動安裝

介紹:MainProcessAppWatcherInstaller
internal class MainProcessAppWatcherInstaller : ContentProvider() {
override fun onCreate(): Boolean {
val application = context!!.applicationContext as Application
AppWatcher.manualInstall(application)
return true
}
MainProcessAppWatcherInstaller安裝是ContentProvider的一個派生類。安裝也是通過
AppWatcher.manualInstall(application)

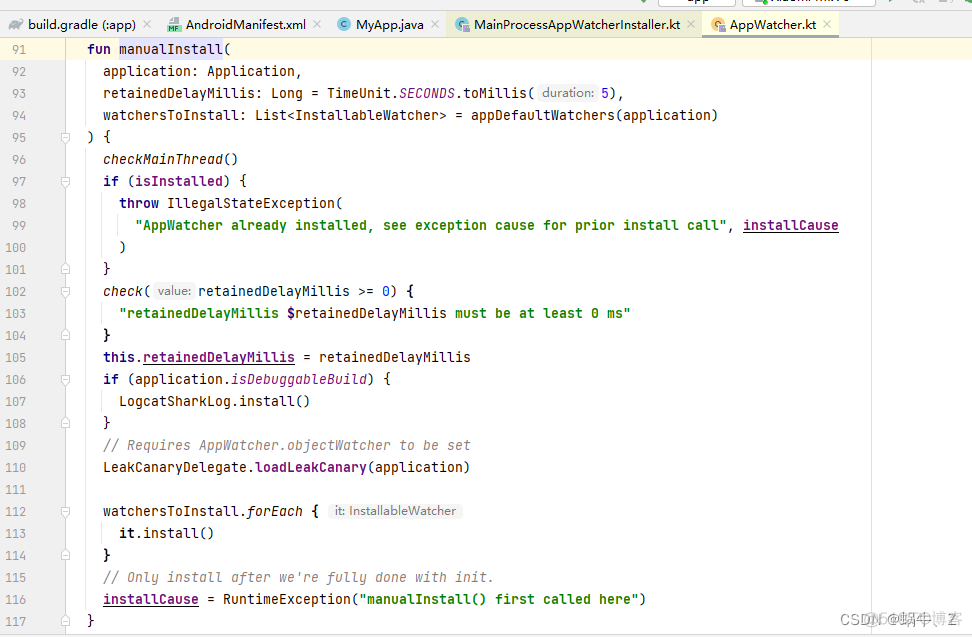

安裝方法manualInstall會做安裝前的檢查
如果不想通過自動安裝,可以通過
Java:AppWatcher.INSTANCE.manualInstall(application);
kotlin:AppWatcher.manualInstall(application);

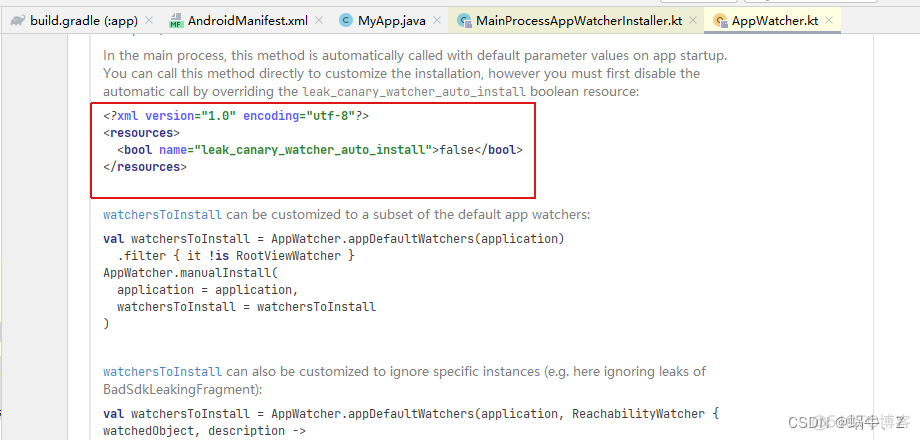

如果不想自己控制,可以在xml資源文件,設置為true。
注意:
如果手動安裝,最好判斷一下是否已安裝AppWatcher.isInstalled()否則會報錯
四、卡頓問題優化:
LeakCanary 造成卡頓的原因就是在主進程中 dump hprof 文件,文件就會涉及到IO操作,在讀寫時,占用大量線程,導致頁面會出現卡頓情況。針對這個問題,可以通過引入多進程方案。避免在IO時,影響主進程
leakcanary-android-process
依賴庫:
debugImplementation 'com.squareup.leakcanary:leakcanary-android-process:2.9.1'

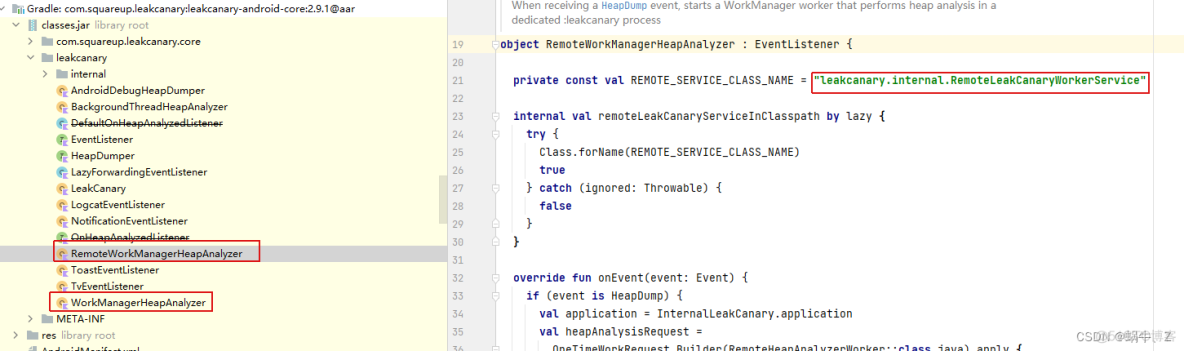

該庫的核心是RemoteLeakCanaryWorkerService,這個服務就是多進程的核心。我們使用的時候,需要提前注冊這個service。
在該service中:
override fun onCreate() {
// Ideally we wouldn't need to install AppWatcher at all here, however
// the installation triggers InternalsLeakCanary to store the application instance
// which is then used by the event listeners that respond to analysis progress.
if (!AppWatcher.isInstalled) {
val application = super.getApplicationContext() as Application
AppWatcher.manualInstall(
application,
// Nothing to watch in the :leakcanary process.
watchersToInstall = emptyList()
)
}
super.onCreate()
}
在oncreate中,執行安裝。
其實,在核心庫中,已加入了該service。我們只需要通過

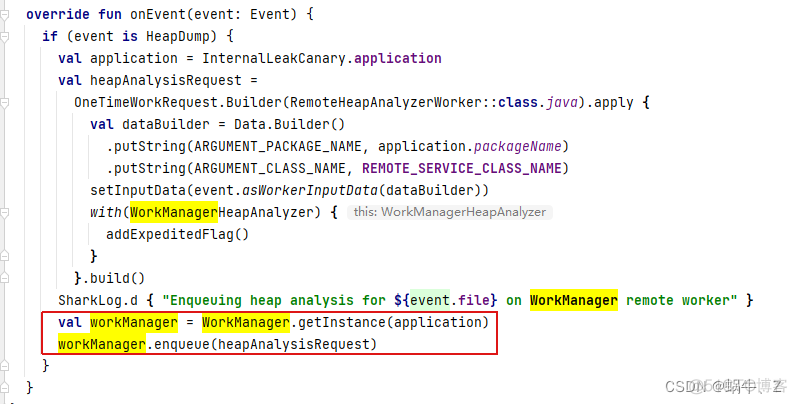

HeapDump:核心

RemoteWorkManagerHeapAnalyzer
WorkManger也是一款開源工具,用于后臺工作的架構組件,需要兼顧機會和有保證的執行。機會性執行意味著WorkManager將盡快完成您的后臺工作。
依賴庫:
def versions_work = "2.3.3"implementation "androidx.work:work-runtime:$versions_work"
五、線上接入:
目前很多調試都是在debug下進行,通過專業工具去處理。但是我們一旦打包以后會移除debug這些模塊。如果線上發生了這些,如何獲取?
很多開發人員通過獲取句柄文件來分析,但是如果我們沒有問題設備,就無法獲取到dump的句柄文件。這時,如果能把句柄文件傳回到日志服務器,這樣就方便開發人員定位信息。
線上使用 LeakCanary,首要要確定以下問題:
- 如何獲取 LeakCanary 分析的結果?
- 結果以何種形式上報到質量平臺上?
- 如何確定合理的監控采集時機,盡可能小的影響用戶體驗?
定義自己的監聽:
上面我們介紹了workmanager這個工具,他就是通過定義一個監聽,來完成后臺的處理,減少主進程的線程操作,降低卡頓。同樣我們也可以定義自己的EventListener。
目前LeakCanary的方法中已提供了一些監聽:
val eventListeners: List = listOf(
LogcatEventListener,
ToastEventListener,
LazyForwardingEventListener {
if (InternalLeakCanary.formFactor == TV) TvEventListener else NotificationEventListener
},
when {
RemoteWorkManagerHeapAnalyzer.remoteLeakCanaryServiceInClasspath ->
RemoteWorkManagerHeapAnalyzer
WorkManagerHeapAnalyzer.validWorkManagerInClasspath -> WorkManagerHeapAnalyzer
else -> BackgroundThreadHeapAnalyzer
}
),
小試牛刀:
import leakcanary.EventListener
class MyLeakCanaryEventListener:EventListener {
override fun onEvent(event: EventListener.Event) {
}
}
Event:
目前已提供了如下Event
1、class DumpingHeap(uniqueId: String) : Event(uniqueId)
從“LeakCanary堆轉儲”HandlerThread發送
2、class HeapDump( uniqueId: String, val file: File, val durationMillis: Long, val reason: String) : Event(uniqueId)
從“LeakCanary堆轉儲”HandlerThread發送
3、class HeapDumpFailed( uniqueId: String, val exception: Throwable, val willRetryLater: Boolean) : Event(uniqueId)
從“LeakCanary堆轉儲”HandlerThread發送。失敗
4、class HeapAnalysisProgress( uniqueId: String, val step: Step, val progressPercent: Double) : Event(uniqueId)
從執行分析的線程發送。
5、sealed class HeapAnalysisDone ( uniqueId: String, val heapAnalysis: T, showIntent: Intent) : Event(uniqueId)
5.1、class HeapAnalysisSucceeded( uniqueId: String, heapAnalysis: HeapAnalysisSuccess, val unreadLeakSignatures: Set , showIntent: Intent)
分析成功,
5.2、class HeapAnalysisFailed( uniqueId: String, heapAnalysis: HeapAnalysisFailure, showIntent: Intent)
分析失敗
這些類都是繼承了class Event( val uniqueId: String),且都是內部類。
分析結果:
if (event is EventListener.Event.HeapAnalysisDone.HeapAnalysisSucceeded) {
//分析成功
val successEvent = event as EventListener.Event.HeapAnalysisDone.HeapAnalysisSucceeded
val list = successEvent.heapAnalysis.allLeaks
list?.let {
for (leak in it) {
leak.leakTraces
}
}
}
這樣我們就可以得到了分析結果。
六、注冊監聽:
注冊監聽涉及到LeakCanary的配置,這邊我們先講解一下LeakCanary.Config配置參數
data class Config(
/**
* Whether LeakCanary should dump the heap when enough retained instances are found. This needs
* to be true for LeakCanary to work, but sometimes you may want to temporarily disable
* LeakCanary (e.g. for a product demo).
*
* Defaults to true.
*/
val dumpHeap: Boolean = true,
/**
* If [dumpHeapWhenDebugging] is false then LeakCanary will not dump the heap
* when the debugger is attached. The debugger can create temporary memory leaks (for instance
* if a thread is blocked on a breakpoint).
*
* Defaults to false.
*/
val dumpHeapWhenDebugging: Boolean = false,
/**
* When the app is visible, LeakCanary will wait for at least
* [retainedVisibleThreshold] retained instances before dumping the heap. Dumping the heap
* freezes the UI and can be frustrating for developers who are trying to work. This is
* especially frustrating as the Android Framework has a number of leaks that cannot easily
* be fixed.
*
* When the app becomes invisible, LeakCanary dumps the heap after
* [AppWatcher.retainedDelayMillis] ms.
*
* The app is considered visible if it has at least one activity in started state.
*
* A higher threshold means LeakCanary will dump the heap less often, therefore it won't be
* bothering developers as much but it could miss some leaks.
*
* Defaults to 5.
*/
val retainedVisibleThreshold: Int = 5,
/**
* Known patterns of references in the heap, added here either to ignore them
* ([IgnoredReferenceMatcher]) or to mark them as library leaks ([LibraryLeakReferenceMatcher]).
*
* When adding your own custom [LibraryLeakReferenceMatcher] instances, you'll most
* likely want to set [LibraryLeakReferenceMatcher.patternApplies] with a filter that checks
* for the Android OS version and manufacturer. The build information can be obtained by calling
* [shark.AndroidBuildMirror.fromHeapGraph].
*
* Defaults to [AndroidReferenceMatchers.appDefaults]
*/
val referenceMatchers: List = AndroidReferenceMatchers.appDefaults,
/**
* List of [ObjectInspector] that provide LeakCanary with insights about objects found in the
* heap. You can create your own [ObjectInspector] implementations, and also add
* a [shark.AppSingletonInspector] instance created with the list of internal singletons.
*
* Defaults to [AndroidObjectInspectors.appDefaults]
*/
val objectInspectors: List = AndroidObjectInspectors.appDefaults,
/**
* Deprecated, add to LeakCanary.config.eventListeners instead.
* Called on a background thread when the heap analysis is complete.
* If you want leaks to be added to the activity that lists leaks, make sure to delegate
* calls to a [DefaultOnHeapAnalyzedListener].
*
* Defaults to [DefaultOnHeapAnalyzedListener]
*/
@Deprecated(message = "Add to LeakCanary.config.eventListeners instead")
val onHeapAnalyzedListener: OnHeapAnalyzedListener = DefaultOnHeapAnalyzedListener.create(),
/**
* Extracts metadata from a hprof to be reported in [HeapAnalysisSuccess.metadata].
* Called on a background thread during heap analysis.
*
* Defaults to [AndroidMetadataExtractor]
*/
val metadataExtractor: MetadataExtractor = AndroidMetadataExtractor,
/**
* Whether to compute the retained heap size, which is the total number of bytes in memory that
* would be reclaimed if the detected leaks didn't happen. This includes native memory
* associated to Java objects (e.g. Android bitmaps).
*
* Computing the retained heap size can slow down the analysis because it requires navigating
* from GC roots through the entire object graph, whereas [shark.HeapAnalyzer] would otherwise
* stop as soon as all leaking instances are found.
*
* Defaults to true.
*/
val computeRetainedHeapSize: Boolean = true,
/**
* How many heap dumps are kept on the Android device for this app package. When this threshold
* is reached LeakCanary deletes the older heap dumps. As several heap dumps may be enqueued
* you should avoid going down to 1 or 2.
*
* Defaults to 7.
*/
val maxStoredHeapDumps: Int = 7,
/**
* LeakCanary always attempts to store heap dumps on the external storage if the
* WRITE_EXTERNAL_STORAGE is already granted, and otherwise uses the app storage.
* If the WRITE_EXTERNAL_STORAGE permission is not granted and
* [requestWriteExternalStoragePermission] is true, then LeakCanary will display a notification
* to ask for that permission.
*
* Defaults to false because that permission notification can be annoying.
*/
val requestWriteExternalStoragePermission: Boolean = false,
/**
* Finds the objects that are leaking, for which LeakCanary will compute leak traces.
*
* Defaults to [KeyedWeakReferenceFinder] which finds all objects tracked by a
* [KeyedWeakReference], ie all objects that were passed to
* [ObjectWatcher.expectWeaklyReachable].
*
* You could instead replace it with a [FilteringLeakingObjectFinder], which scans all objects
* in the heap dump and delegates the decision to a list of
* [FilteringLeakingObjectFinder.LeakingObjectFilter]. This can lead to finding more leaks
* than the default and shorter leak traces. This also means that every analysis during a
* given process life will bring up the same leaking objects over and over again, unlike
* when using [KeyedWeakReferenceFinder] (because [KeyedWeakReference] instances are cleared
* after each heap dump).
*
* The list of filters can be built from [AndroidObjectInspectors]:
*
* ```kotlin
* LeakCanary.config = LeakCanary.config.copy(
* leakingObjectFinder = FilteringLeakingObjectFinder(
* AndroidObjectInspectors.appLeakingObjectFilters
* )
* )
* ```
*/
val leakingObjectFinder: LeakingObjectFinder = KeyedWeakReferenceFinder,
/**
* Dumps the Java heap. You may replace this with your own implementation if you wish to
* change the core heap dumping implementation.
*/
val heapDumper: HeapDumper = AndroidDebugHeapDumper,
/**
* Listeners for LeakCanary events. See [EventListener.Event] for the list of events and
* which thread they're sent from. You most likely want to keep this list and add to it, or
* remove a few entries but not all entries. Each listener is independent and provides
* additional behavior which you can disable by not excluding it:
*
* ```kotlin
* // No cute canary toast (very sad!)
* LeakCanary.config = LeakCanary.config.run {
* copy(
* eventListeners = eventListeners.filter {
* it !is ToastEventListener
* }
* )
* }
* ```
*/
val eventListeners: List = listOf(
LogcatEventListener,
ToastEventListener,
LazyForwardingEventListener {
if (InternalLeakCanary.formFactor == TV) TvEventListener else NotificationEventListener
},
when {
RemoteWorkManagerHeapAnalyzer.remoteLeakCanaryServiceInClasspath ->
RemoteWorkManagerHeapAnalyzer
WorkManagerHeapAnalyzer.validWorkManagerInClasspath -> WorkManagerHeapAnalyzer
else -> BackgroundThreadHeapAnalyzer
}
),
/**
* Deprecated: This is a no-op, set a custom [leakingObjectFinder] instead.
*/
@Deprecated("This is a no-op, set a custom leakingObjectFinder instead")
val useExperimentalLeakFinders: Boolean = false
)
默認都是有值,對應參數如下:
private var dumpHeap = config.dumpHeap
private var dumpHeapWhenDebugging = config.dumpHeapWhenDebugging
private var retainedVisibleThreshold = config.retainedVisibleThreshold
private var referenceMatchers = config.referenceMatchers
private var objectInspectors = config.objectInspectors
private var onHeapAnalyzedListener = config.onHeapAnalyzedListener
private var metadataExtractor = config.metadataExtractor
private var computeRetainedHeapSize = config.computeRetainedHeapSize
private var maxStoredHeapDumps = config.maxStoredHeapDumps
private var requestWriteExternalStoragePermission =
config.requestWriteExternalStoragePermission
private var leakingObjectFinder = config.leakingObjectFinder
private var heapDumper = config.heapDumper
private var eventListeners = config.eventListeners
private var useExperimentalLeakFinders = config.useExperimentalLeakFinders
新增我們的監聽:
val eventListeners = LeakCanary.config.eventListeners.toMutableList().apply {
add(MyLeakCanaryEventListener())
}
LeakCanary.config=LeakCanary.config.copy(
eventListeners=eventListeners
)
這樣整個線上監聽基本完成。
我們只要對LeakTrace進行分析,把結果存儲后,在一個合適的時機上報給服務器即可
七、AppWatcher的看守配置:
知道如何去分析這些問題,LeakCanary還提供了看門機制,監聽哪些也是可以通過配置的。
在AppWatcher中,也提供了Config
data class Config(
@Deprecated("Call AppWatcher.manualInstall() with a custom watcher list")
val watchActivities: Boolean = true,
@Deprecated("Call AppWatcher.manualInstall() with a custom watcher list")
val watchFragments: Boolean = true,
@Deprecated("Call AppWatcher.manualInstall() with a custom watcher list")
val watchFragmentViews: Boolean = true,
@Deprecated("Call AppWatcher.manualInstall() with a custom watcher list")
val watchViewModels: Boolean = true,
@Deprecated("Call AppWatcher.manualInstall() with a custom retainedDelayMillis value")
val watchDurationMillis: Long = TimeUnit.SECONDS.toMillis(5),
@Deprecated("Call AppWatcher.appDefaultWatchers() with a custom ReachabilityWatcher")
val enabled: Boolean = true
)
可以看守的有以下,默認都是開啟,如果你想關閉哪個,默認設為false即可
AppWatcher.config= AppWatcher.config.copy(watchActivities = false, enabled = false)
這樣,我們就可以很好的看守我們想要的結果。
八、ANR日志收集
ANR或者crash的創建,也意味著ActivityThread的線程已經掛了,這時候我們?nèi)魏蔚淖龇ǘ疾荒芤蕾?lài)主線程來完成,這樣會導致抓取不到日志。
我們知道,虛擬機android的跨線程通訊都是binder,雖然ActivityThread掛了,但是AMS沒有掛,AMS還存活在SystemManager中,又因?yàn)槊總€(gè)進程在fork出來的時候都有自己的binder。所以這個時候我們可以通過AMS來獲取。
日志收集核心:獲取、存儲、上報。獲取到存儲是核心流程,如何將獲取的日志進行存儲,IO機制顯然無法滿足這么短時間的操作。這個時候我們可以參考內存映射mmp機制。目前包括一些開源的都是采用mmap,常見的框架如微信的mmkv,mmkv是采用了mmap,也都是c在處理,利用內存映射來獲取日志文檔,這樣就很容易獲取到日志信息。
九、總結
通過接入、卡頓優化、攔截、配置等,能夠很好的滿足我們從線上到線下的各種把控??梢院芎玫耐晟茟?yīng)用的監控與優化機制。
Debug模式,直接在LeaksApp中可以很好的看到問題列表。其他更多的可以參考github的開源信息,或者自己接入調試。
本文僅代表作者觀點,版權歸原創者所有,如需轉載請?jiān)谖闹凶⒚鱽?lái)源及作者名字。
免責聲明:本文系轉載編輯文章,僅作分享之用。如分享內容、圖片侵犯到您的版權或非授權發布,請及時與我們聯系進行審核處理或刪除,您可以發送材料至郵箱:service@tojoy.com
