【物聯網】mqtt初體驗
2023-04-12
文章目錄
- 安裝EMQX
- java集成
- 添加依賴
- mqtt配置參數
- 發布組件
- 訂閱組件
- 測試接口
- 接口測試
最近在了解物聯網云平臺方面的知識，接觸了mqtt協議，只看書籍難免有些枯燥，所以直接試驗一下，便于鞏固理論知識。
broker服務器操作系統：centos7
broker服務程序：EMQX
虛擬機IP地址：192.168.89.82
安裝EMQX
在自己的虛擬機環境下進行安裝，按照EMQX官方資料操作即可，步驟如下：
[root@centos7-82 ~]# cd /usr/src
[root@centos7-82 src]# wget https://www.emqx.com/zh/downloads/broker/5.0.17/emqx-5.0.17-el7-amd64.tar.gz
[root@centos7-82 src]# mkdir -p emqx
[root@centos7-82 src]# tar -zxvf emqx-5.0.17-el7-amd64.tar.gz -C emqx
[root@centos7-82 src]# ./emqx/bin/emqx start啟動后，控制臺日志如下：

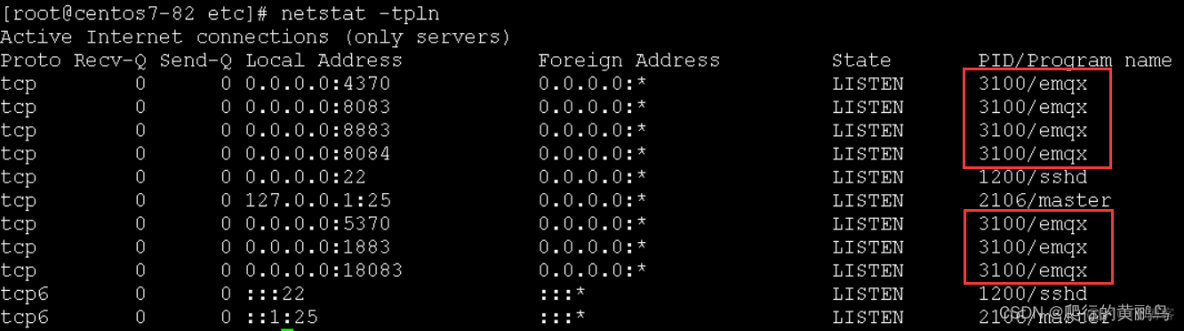

可以看下emqx端口：
瀏覽器訪問地址如下：http://192.168.89.82:18083/ 默認的用戶名密碼為admin、public，第一次登錄后會首先要求修改密碼。
java集成
為了快速體驗，直接一個springboot工程里既有發布客戶端也有訂閱客戶端。
添加依賴
org.eclipse.paho
org.eclipse.paho.client.mqttv3
1.2.5
mqtt配置參數
mqtt.broker=tcp://192.168.89.82:1883
mqtt.username=admin
mqtt.password=admin發布組件
@Component
public class PublishSample {
private static final Logger log = LoggerFactory.getLogger(PublishSample.class);
@Autowired
public MqttPropertiesConfig mqttPropertiesConfig;
public void sentMsg(String content, String clientId, String topic, int qos){
try {
MqttClient mqttClient = new MqttClient(mqttPropertiesConfig.getBroker(), clientId, new MemoryPersistence());
// 連接參數
MqttConnectOptions mqttConnectOptions = new MqttConnectOptions();
// 設置用戶名和密碼
mqttConnectOptions.setUserName(mqttPropertiesConfig.getUsername());
mqttConnectOptions.setPassword(mqttPropertiesConfig.getPassword().toCharArray());
mqttConnectOptions.setConnectionTimeout(60);
mqttConnectOptions.setKeepAliveInterval(60);
// 連接
mqttClient.connect(mqttConnectOptions);
// 創建消息并設置 QoS
MqttMessage message = new MqttMessage(content.getBytes());
message.setQos(qos);
// 發布消息
mqttClient.publish(topic, message);
log.info("Message published");
log.info("topic: {}", topic);
log.info("message content: {}", content);
// 關閉連接
mqttClient.disconnect();
// 關閉客戶端
mqttClient.close();
} catch (MqttException e) {
throw new RuntimeException(e);
}
}
}訂閱組件
@Component
public class SubscribeSample {
private static final Logger log = LoggerFactory.getLogger(SubscribeSample.class);
@Autowired
public MqttPropertiesConfig mqttPropertiesConfig;
public void subTest(String clientId, String topic, int qos){
try {
MqttClient client = new MqttClient(mqttPropertiesConfig.getBroker(), clientId, new MemoryPersistence());
// 連接參數
MqttConnectOptions options = new MqttConnectOptions();
options.setUserName(mqttPropertiesConfig.getUsername());
options.setPassword(mqttPropertiesConfig.getPassword().toCharArray());
options.setConnectionTimeout(60);
options.setKeepAliveInterval(60);
// 設置回調
client.setCallback(new MqttCallback() {
public void connectionLost(Throwable cause) {
log.info("connectionLost: {}", cause.getMessage());
}
public void messageArrived(String topic, MqttMessage message) {
log.info("topic: {}", topic);
log.info("Qos: {}", message.getQos());
log.info("message content: {}", new String(message.getPayload()));
}
public void deliveryComplete(IMqttDeliveryToken token) {
log.info("deliveryComplete---------{}", token.isComplete());
}
});
client.connect(options);
client.subscribe(topic, qos);
} catch (Exception e) {
e.printStackTrace();
}
}
}測試接口
@RestController
public class TestController {
private static final Logger log = LoggerFactory.getLogger(TestController.class);
@Autowired
public PublishSample publishSample;
@Autowired
public SubscribeSample subscribeSample;
/**
* 發布接口
* @param content
* @return
*/
@RequestMapping("sent")
public String sent(String content){
String clientId = "lizx_pub_client1";
int qos = 0;
String topic = "mqtt/test";
log.info("sent");
publishSample.sentMsg(content, clientId, topic, qos);
return "success";
}
/**
* 模擬訂閱客戶端1
* @return
*/
@RequestMapping("sub1")
public String sub1(){
String clientId = "lizx_sub_client1";
int qos = 0;
String topic = "mqtt/test";
log.info("sub1");
subscribeSample.subTest(clientId, topic, qos);
return "success";
}
/**
* 模擬訂閱客戶端2
* @return
*/
@RequestMapping("sub2")
public String sub2(){
String clientId = "lizx_sub_client2";
int qos = 0;
String topic = "mqtt/test";
log.info("sub2");
subscribeSample.subTest(clientId, topic, qos);
return "success";
}
}接口測試
直接簡單瀏覽器兩個標簽頁分別輸入：
http://127.0.0.1:8080/sub1 http://127.0.0.1:8080/sub2 然后再打開一個標簽頁輸入：
http://127.0.0.1:8080/sent?content=Hello%20MQTT
后臺日志如下：
2023-02-14 16:19:39.970 INFO 5708 --- [nio-8080-exec-1] com.lizx.emqx.client.web.TestController : sub1
2023-02-14 16:19:46.651 INFO 5708 --- [nio-8080-exec-2] com.lizx.emqx.client.web.TestController : sub2
2023-02-14 16:19:50.384 INFO 5708 --- [nio-8080-exec-3] com.lizx.emqx.client.web.TestController : sent
2023-02-14 16:19:50.697 INFO 5708 --- [nio-8080-exec-3] c.lizx.emqx.client.sample.PublishSample : Message published
2023-02-14 16:19:50.698 INFO 5708 --- [nio-8080-exec-3] c.lizx.emqx.client.sample.PublishSample : topic: mqtt/test
2023-02-14 16:19:50.703 INFO 5708 --- [izx_sub_client2] c.l.emqx.client.sample.SubscribeSample : topic: mqtt/test
2023-02-14 16:19:50.703 INFO 5708 --- [izx_sub_client1] c.l.emqx.client.sample.SubscribeSample : topic: mqtt/test
2023-02-14 16:19:50.705 INFO 5708 --- [nio-8080-exec-3] c.lizx.emqx.client.sample.PublishSample : message content: Hello MQTT
2023-02-14 16:19:50.705 INFO 5708 --- [izx_sub_client2] c.l.emqx.client.sample.SubscribeSample : Qos: 0
2023-02-14 16:19:50.705 INFO 5708 --- [izx_sub_client1] c.l.emqx.client.sample.SubscribeSample : Qos: 0
2023-02-14 16:19:50.706 INFO 5708 --- [izx_sub_client2] c.l.emqx.client.sample.SubscribeSample : message content: Hello MQTT
2023-02-14 16:19:50.706 INFO 5708 --- [izx_sub_client1] c.l.emqx.client.sample.SubscribeSample : message content: Hello MQTT
